Knee & Hip Joints

PKN0101

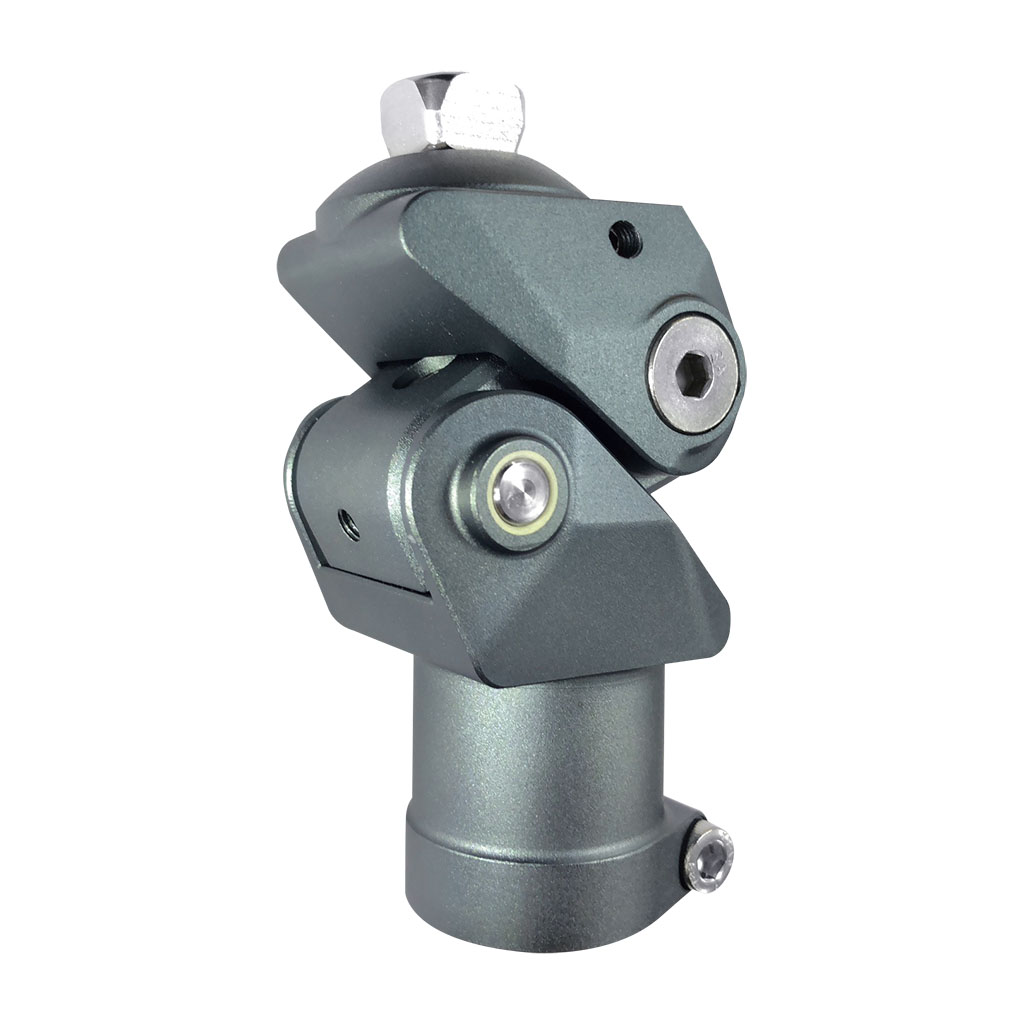

Monocentric Knee

• Monocentric knee joint
• Self-lock at early stance phase with adjustable knee flexion stiffness and angle.
• 2. Adjustable knee tilting angle.
• Ultra easy friction adjustment
• Smooth extension assistant adjustment
• Frame construction made of superlight aluminum alloy
• Light weight design
• Suitable for for K1 and low K2 patients
• MANUAL LOCK ONLY


Build Height	114mm
Knee Center to Dome	29mm
Amputation Level	Transfemoral amputation
Activity Level	K2
Knee Weight	450 g
Max. Weight Bearing	125 Kg/275 lbs
Max. Flexion Angle	145°
Top Adaptor	Pyramid adaptor
Bottom Adaptor	Tube clamp
Warranty	2 years
